Introduction
Solar power has become an increasingly popular renewable energy source, powering homes, businesses, and even entire communities. However, to ensure optimal performance and energy savings, it’s essential to have the right equipment that can manage the conversion of solar energy into usable power. One such critical component in any solar energy setup is the solar charge controller. Among the various options available, the M120A MPPT Solar Charge Controller stands out for its advanced features and efficiency.
This article delves into the workings, benefits, and features of the M120A MPPT Solar Charge Controller. Whether you’re a solar power enthusiast or looking to upgrade your existing system, this guide will help you understand why the M120A is a superior choice for maximizing the potential of your solar installation.

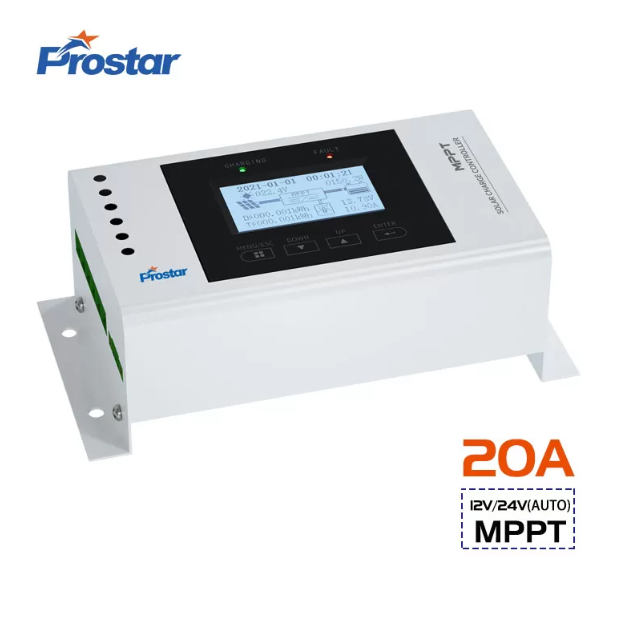

What is the M120A MPPT Solar Charge Controller?
The M120A MPPT Solar Charge Controller is an advanced device used in solar power systems to regulate the power generated by solar panels and ensure that the energy is properly stored in the battery for later use. MPPT stands for Maximum Power Point Tracking, a technology that allows the controller to adjust the system’s parameters and continuously track the optimal point for maximum energy extraction from the solar panels. Unlike traditional controllers, which might simply regulate power flow based on preset parameters, the MPPT controller dynamically adjusts to the changing conditions of solar irradiance and temperature to ensure maximum efficiency.
The M120A is ideal for medium- to large-scale solar applications, offering high efficiency and performance while being able to handle a wide range of solar panel configurations. It is particularly popular in residential and commercial systems, where maximizing power output and ensuring reliable battery charging is essential.
How Does the M120A MPPT Solar Charge Controller Work?
The key function of the M120A MPPT Solar Charge Controller is to optimize the power coming from the solar panels and manage the charging of the connected battery. The process works as follows:
1. Maximum Power Point Tracking (MPPT) Technology
MPPT is the most critical feature of the M120A. Solar panels do not generate a constant output of energy; instead, their power output varies based on the intensity of sunlight, temperature, and the angle of the panels. MPPT technology allows the M120A to continually monitor these changes and adjust the voltage and current to keep the system operating at the optimal power point.
This means that no matter the environmental conditions, the M120A ensures that the solar panels are operating at their highest possible efficiency, extracting as much energy as possible from the available sunlight.
2. Energy Conversion and Storage
Once the MPPT technology determines the optimal operating point, the M120A regulates the conversion of power from the solar panels into a voltage suitable for charging the battery bank. By adjusting the voltage levels, the M120A ensures that the energy is stored in the battery at an efficient rate, without wasting power. This allows the batteries to charge more quickly and effectively.
3. Charging Stages
The M120A uses a multi-stage charging process to optimize the health of the battery. The charging process generally involves three stages:
- Bulk Charging: In this stage, the controller charges the battery at a maximum rate until the battery reaches a certain voltage level.
- Absorption Charging: After the bulk charge, the charging rate is reduced to prevent overcharging. The controller maintains the battery at a constant voltage while the charge continues.
- Float Charging: In this final stage, the controller keeps the battery at a lower voltage to maintain the battery charge without overcharging.
This method ensures that the battery is charged efficiently and safely, prolonging its life.
4. Monitoring and Adjustments
Throughout the process, the M120A continuously monitors the power output of the solar panels, the state of charge of the batteries, and overall system performance. If there are any changes in environmental conditions or the power requirements of the system, the M120A adjusts its parameters accordingly to ensure that the solar energy system is operating at peak performance.
Features of the M120A MPPT Solar Charge Controller
The M120A offers a range of features designed to optimize the efficiency of solar energy systems and provide users with maximum control over their solar setups. Here are some of the standout features:
1. High Efficiency and Performance
One of the most significant advantages of the M120A is its high efficiency, often exceeding 98%. This means that more of the energy generated by the solar panels is effectively converted into usable power and stored in the batteries. Compared to traditional pulse-width modulation (PWM) charge controllers, the M120A offers significantly better performance, especially in conditions where the sunlight may not be consistently strong.
2. Wide Voltage Range
The M120A is compatible with a wide range of solar panel voltages, making it suitable for various types of solar setups. Whether you’re using high-voltage or low-voltage solar panels, the controller adapts to the system’s specific requirements, giving you the flexibility to choose panels that suit your needs. This flexibility makes the M120A a great choice for a variety of installation configurations.
3. Advanced Battery Charging Algorithm
The M120A is capable of supporting multiple battery types, including Lead-Acid, Gel, and Lithium-ion batteries. The controller comes equipped with an advanced charging algorithm that adapts to the type of battery connected to the system, ensuring optimal charging cycles and better battery performance. This functionality helps extend the lifespan of the batteries and improves the overall efficiency of the solar system.
4. Real-Time Monitoring and Control
The M120A provides users with the ability to monitor system performance in real time. It includes an LCD display that provides essential information such as battery voltage, solar input, charging current, and system status. Some models of the M120A also support Wi-Fi connectivity, enabling users to remotely monitor their solar power systems using a smartphone app or web portal. This real-time monitoring gives users complete control and insight into their system’s performance.
5. Protection Mechanisms
The M120A is designed with safety in mind, offering multiple protection features to ensure the system operates smoothly and avoids damage. These protections include:
- Overload Protection: Prevents the system from becoming overloaded by excessive current.
- Overcharge Protection: Stops the charging process once the battery is fully charged, avoiding potential damage from overcharging.
- Short Circuit Protection: Guards the system against electrical faults by disconnecting the power in case of a short circuit.
- Reverse Polarity Protection: Prevents damage in case the wiring is incorrectly connected.
6. Durability and Weather Resistance
The M120A is built to withstand harsh environmental conditions, making it suitable for both indoor and outdoor installations. It is weather-resistant and constructed using high-quality materials to endure extreme temperatures, humidity, and exposure to dust and dirt, ensuring long-term reliability and performance.
Advantages of the M120A MPPT Solar Charge Controller
1. Improved Efficiency and Power Generation
The MPPT technology employed by the M120A ensures that the maximum possible amount of energy is extracted from the solar panels, improving the overall efficiency of the system. This is especially beneficial for systems installed in areas with inconsistent sunlight, where maximizing energy capture is crucial.
2. Prolonged Battery Life
The advanced charging algorithm and multiple protection features help ensure that the batteries are charged safely, which can significantly extend their lifespan. By preventing overcharging and optimizing the charging process, the M120A helps reduce wear and tear on the battery, ultimately lowering maintenance and replacement costs.
3. Cost-Effective and Reliable
While MPPT controllers like the M120A may come at a higher initial cost compared to traditional PWM controllers, the enhanced efficiency and performance they offer lead to significant long-term savings. By maximizing the energy harvested from solar panels and reducing energy loss, the M120A helps reduce electricity costs and makes it a wise investment for both residential and commercial solar systems.
4. Ease of Use and Monitoring
The user-friendly interface, coupled with real-time monitoring and remote access options, allows users to keep a close eye on their system’s performance. This helps users optimize their solar setup and troubleshoot any potential issues with ease.
Conclusion
The M120A MPPT Solar Charge Controller is an advanced, highly efficient solution for anyone looking to maximize the performance of their solar power system. With features like MPPT technology, real-time monitoring, wide voltage compatibility, and advanced battery charging algorithms, the M120A provides a reliable and cost-effective solution for managing solar energy storage. Its high efficiency, coupled with safety features and protection mechanisms, ensures that solar systems run optimally, leading to longer battery life and significant cost savings over time.
For homeowners, businesses, and industries looking to harness the full potential of solar energy, the M120A MPPT Solar Charge Controller offers unparalleled performance and reliability, making it an excellent investment for both new and existing solar installations.
